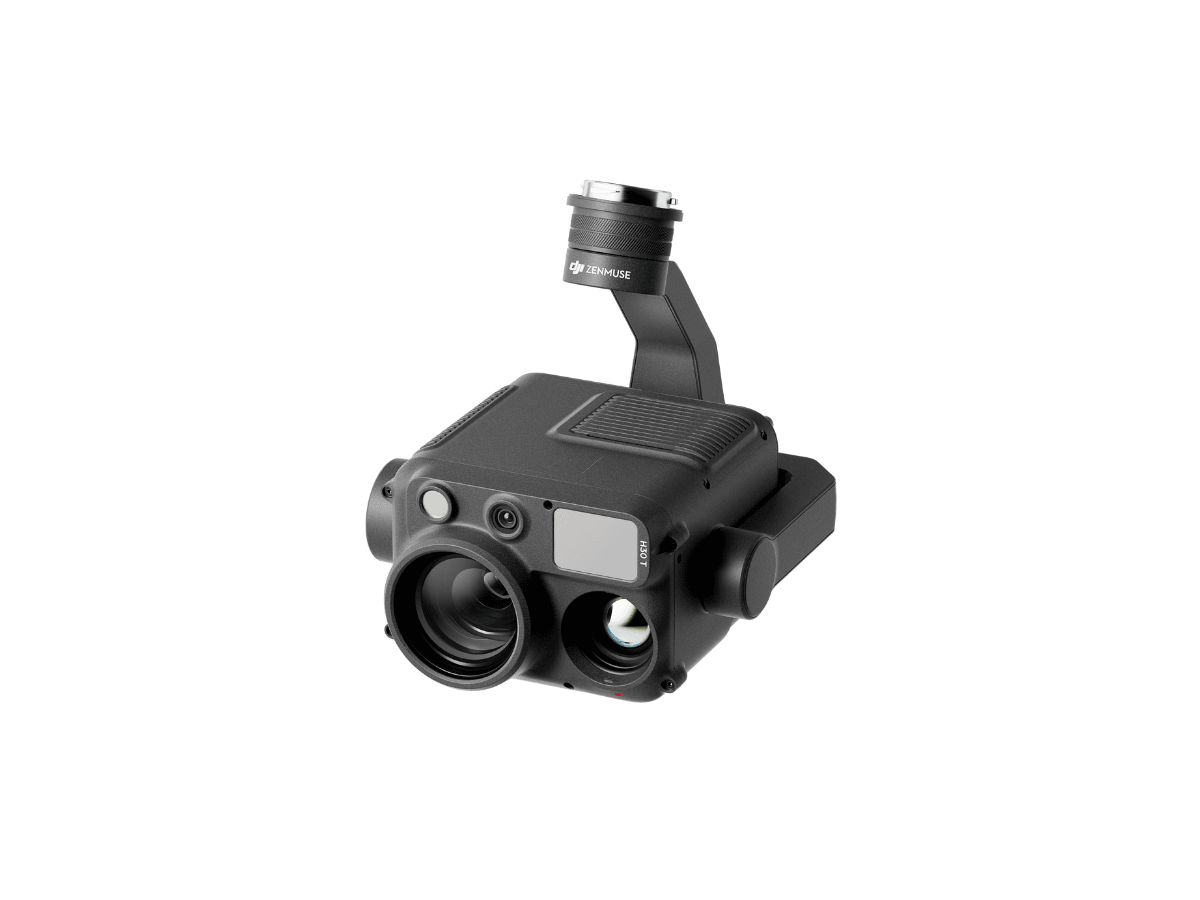

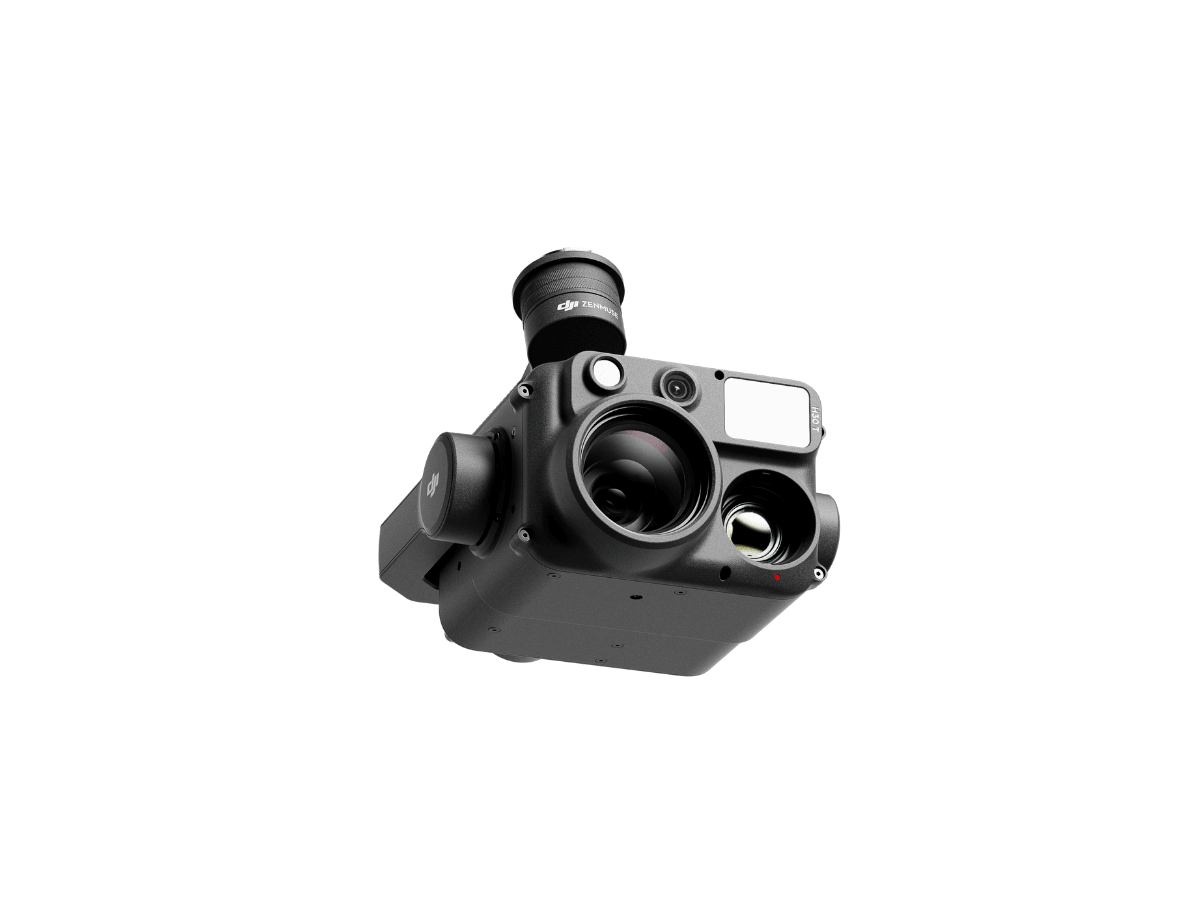

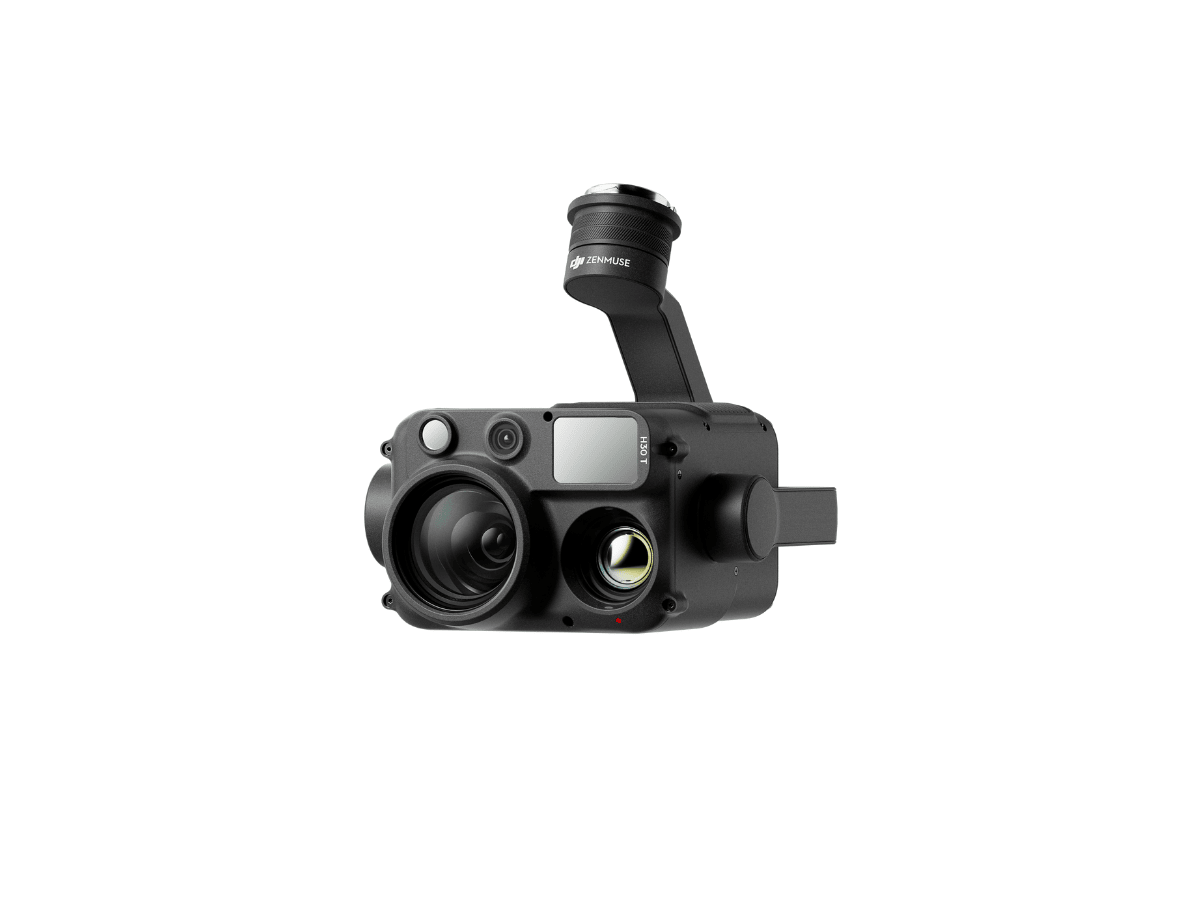

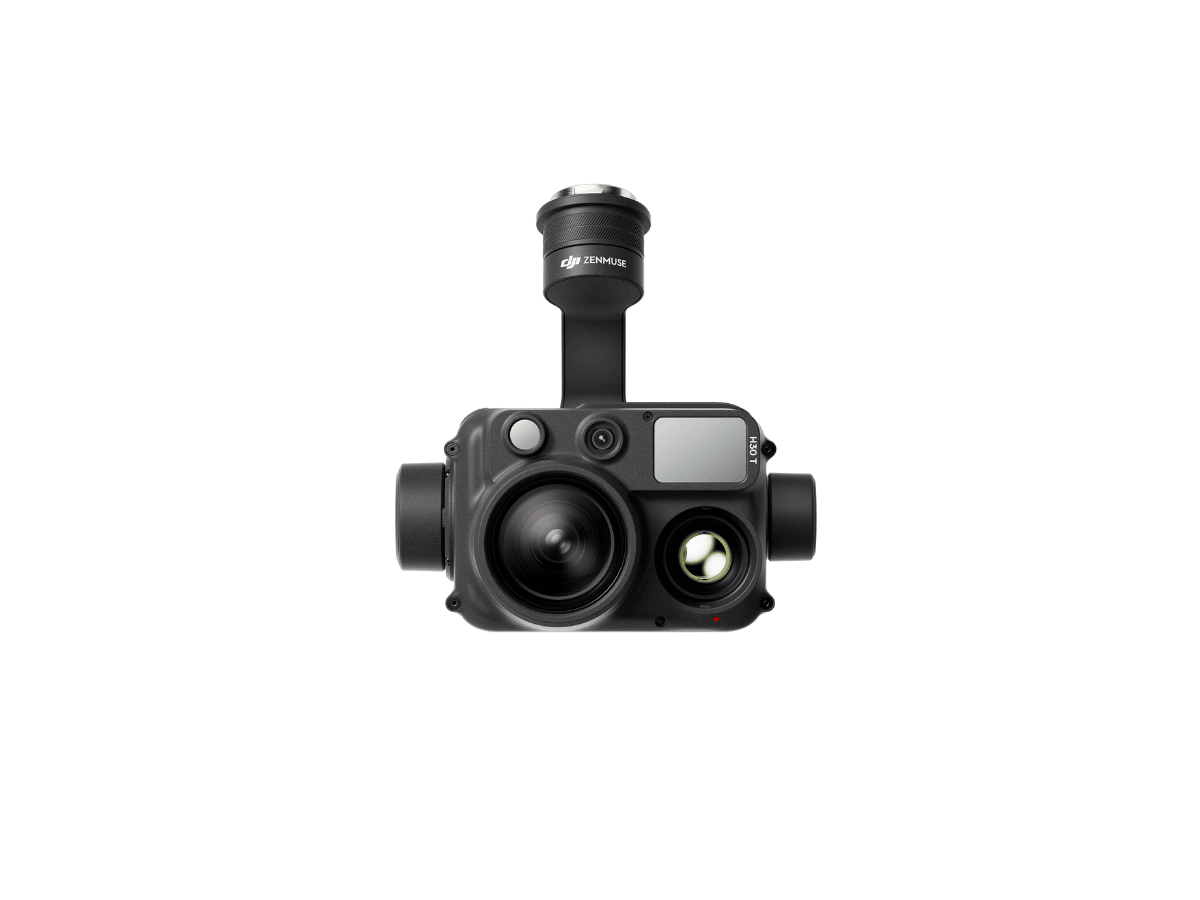

DJI Zenmuse H30N

DJI Zenmuse H30N

The DJI Zenmuse H30 series is the newest addition to DJI’s collection of Hybrid Sensor Payloads, building upon the success of its predecessor, the H20 Series.
This series consists of the H30 and the H30T (thermal), offering mission versatility for a range of industries, including public safety and inspection.
The H30 Series is an all-weather multi-sensor payload with wide-angle camera, zoom camera, laser range finder, and NIR auxiliary light. The H30T also has a thermal sensor.
It is compatible with two drones: The DJI M350 RTK and the DJI M300 – with the DJI RC Plus. Please note that the H30T is not available separately, and is only available as a combo with the DJI M350 RTK.

Key features:
Improved Zoom Camera: Experience up to 400x digital zoom and 34x optical zoom. Zoom camera is 40MP 1/1.8-inch CMOS sensor.

Wide-angle Camera: 48MP 1/1.3-inch CMOS sensor. Maximum video resolution of 3840 x 2160 @ 30fps.

Laser Range Finder: This payload can determine the distance of objects within an impressive range of 3 – 3000 m at an accuracy of 0.2 m under 500 m and 1 m over 500 m.

NIR Auxiliary light: Light up dark environments up to 100 meters away using NIR bands. These bands detect infrared vibrations (invisible to humans) within 850 meters by capturing their overtones and combinations of absorption bands.

Detect Details: The H30 has a superior observation effect on target details 700 m away compared to the H20.

Multi-Touch Gesture: Easily manage the camera features of the H30 using the touchscreen settings on the DJI RC Plus Controller, enabling straightforward user navigation to access its advanced camera settings

Night Vision: Activate night mode with options of full-colour or black-and-white to achieve higher clarity and accuracy at night and in dark places.

Powerful Thermal (H30T): Photo Resolution of 1280 x 1024 and video resolution of 1280 x 1024 @ 30fps. Obtain 32x digital zoom. Temperature measurement range between -20°C and 1600°C.

Higher Integration: The H30T boasts the capability to integrate with five major modules – a wide-angle camera, a zoom camera, an infrared thermal camera, a laser range finder, and a NIR auxiliary light.

Package includes:
DJI Zenmuse H30N x1
