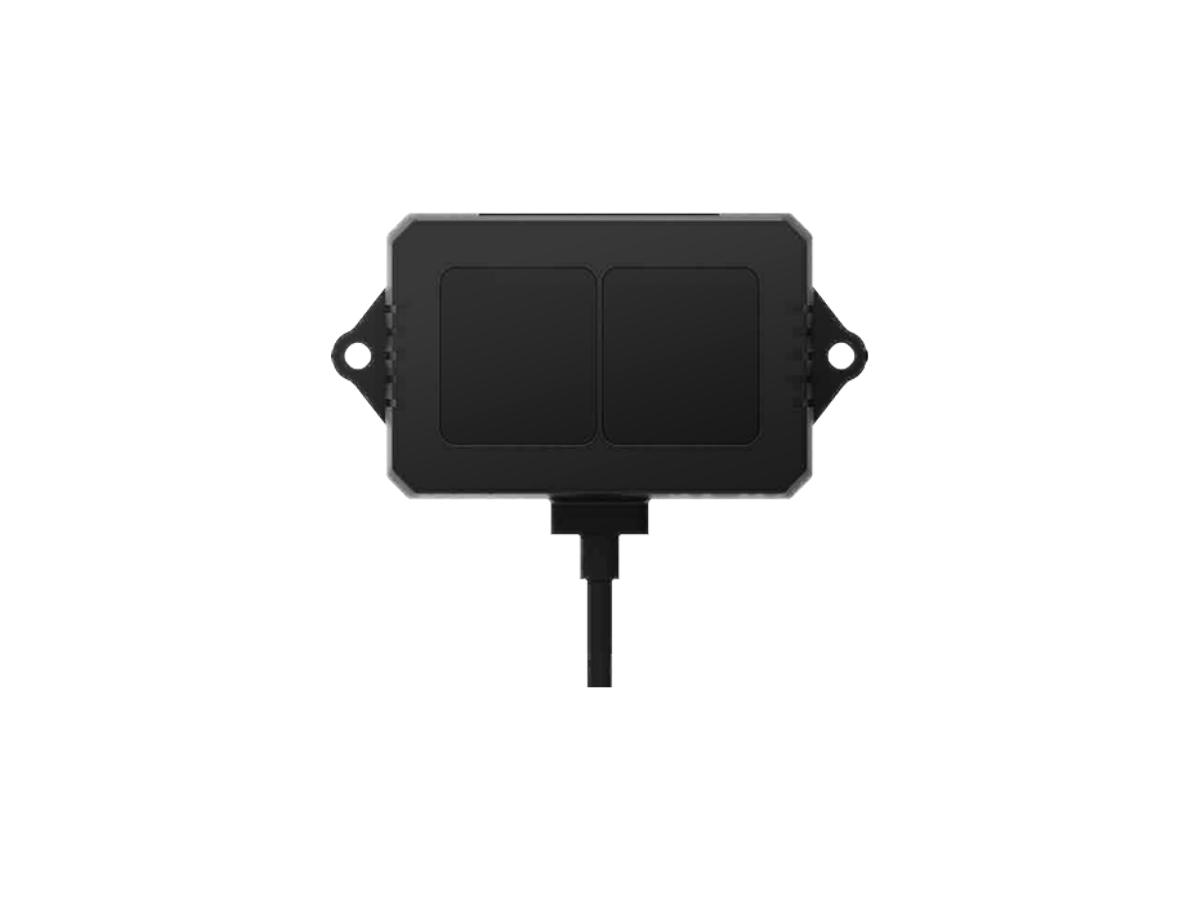

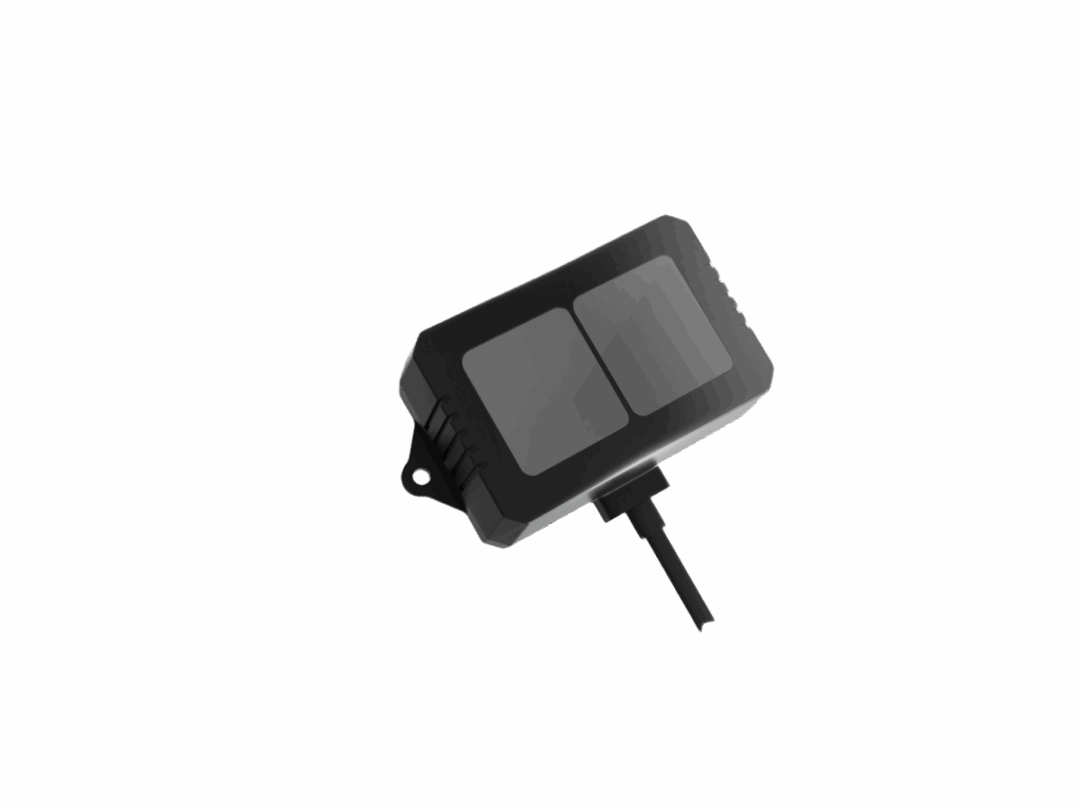

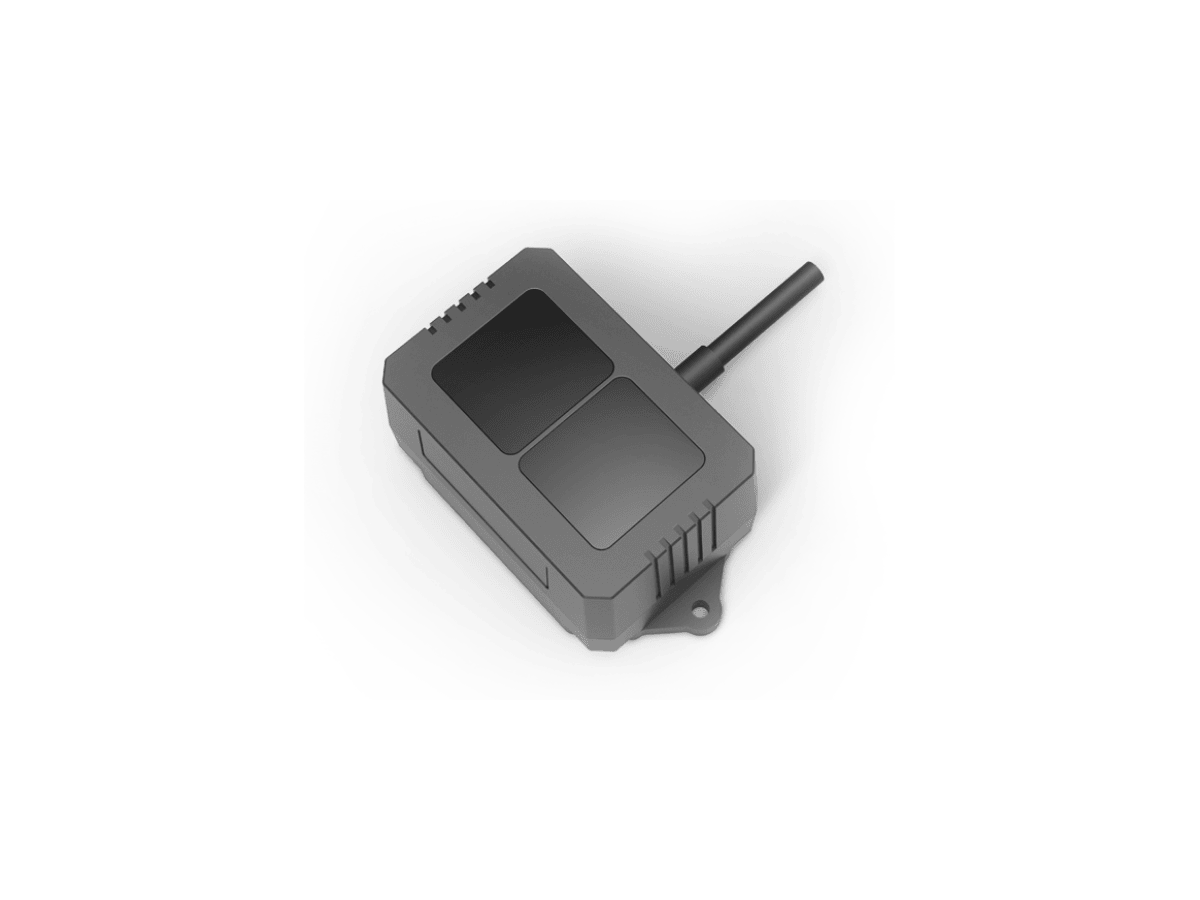

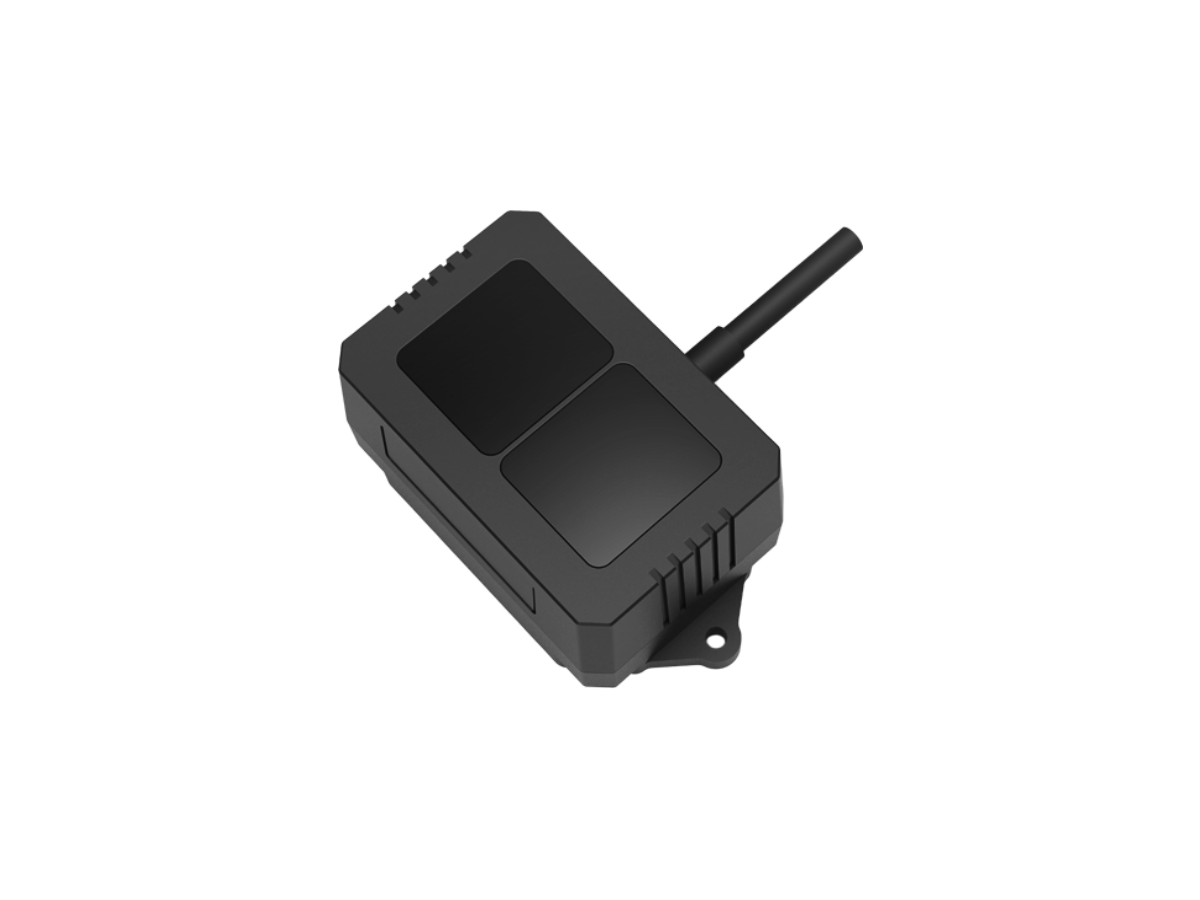

TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LIDAR

TF02-Pro LIDAR Distance Ranging Sensor FOR DRONES UAV UAS Robots (40M) IP65 LIDAR

The Benewake TF02-Pro LiDAR Distance Ranging Sensor is a high-performance single-point ranging sensor designed for UAVs, UAS, robots, and intelligent transport systems. An upgraded version of the TF02, it delivers extended range, improved accuracy, and better outdoor stability, making it ideal for industrial and drone-based distance measurement applications.

Using Time-of-Flight (TOF) technology, the TF02-Pro provides precise, fast, and stable range detection even under challenging ambient light conditions. With a maximum detection range of 40 meters at 90% reflectivity and 13.5 meters at 10% reflectivity, it ensures reliable measurement across varying surface materials and lighting environments.

The sensor’s IP65-rated enclosure provides protection against dust and water, making it suitable for outdoor and industrial environments. The TF02-Pro combines low power consumption (under 1W) with multiple communication interfaces (UART/I2C/IO), ensuring easy integration with drones, vehicles, and robotic systems.

Key Features
1. Extended 40-Meter Ranging Distance
The TF02-Pro offers an impressive 40-meter maximum detection range at high reflectivity (90%) and 13.5 meters at low reflectivity (10%), ensuring accurate measurement across a variety of targets and surfaces.

1. Strong Ambient Light Resistance
   Withstand outdoor light intensities up to 100 Klux without losing accuracy. The TF02-Pro maintains consistent performance even under direct sunlight, enabling reliable outdoor operation in harsh lighting conditions.

2. High Accuracy and Stability
   Achieves ±1% relative error between 5–40 meters, providing consistent distance readings. Its upgraded algorithm improves measurement stability by 50%, making it suitable for precision navigation, object detection, and industrial monitoring.

3. Fast Response and High Frame Rate
   Supports a measurement frequency up to 1000 Hz, allowing real-time distance updates ideal for high-speed drones, automated vehicles, and obstacle avoidance systems.

4. Energy-Efficient Design

Consumes less than 1W (@5V) on average, reducing total system power demand by 50% compared to earlier models. Operates efficiently across a 5V–12V input range, compatible with multiple hardware setups.

1. Multi-Interface Communication
   Equipped with UART, I2C, and IO interfaces, the TF02-Pro connects easily to controllers such as Arduino, Raspberry Pi, STM32, Jetson Nano, and other embedded systems, simplifying system integration.

2. Wide Environmental Adaptability
   Performs reliably across -20°C to +60°C temperature ranges, making it suitable for year-round outdoor deployments. The IP65 protection rating ensures durability against dust and moisture exposure.

3. Compact and Durable Build
   Compact structure and lightweight housing ensure easy installation on UAVs, robotic arms, or automated systems without adding significant payload weight. Its industrial-grade casing resists vibration and weathering.

Applications
1. UAV and Drone Navigation
Used in agriculture, mapping, and industrial UAVs for altitude control, obstacle avoidance, and terrain following. Its fast response and long range enable safe flight in dynamic conditions.

1. Intelligent Transportation Systems
   Supports vehicle detection, barrier gate control, and vehicle positioning for intelligent parking and traffic management solutions.

2. Robotics and Automation
   Provides real-time obstacle avoidance and distance sensing for service robots, warehouse AGVs, and outdoor robotic platforms requiring accurate depth data.

3. Industrial Level Monitoring
   Ideal for liquid level measurement, material height detection, and inventory management in industrial tanks and silos. Ensures stable readings under dust and high-illumination conditions.

4. Smart Infrastructure
   Used in security systems, intrusion detection, and environmental monitoring, offering high-frequency, non-contact distance measurement in both static and moving environments.

Why Choose TF02-Pro LiDAR?
40 m maximum detection range with ±1% accuracy

Excellent outdoor light resistance up to 100 Klux

High refresh rate up to 1000 Hz

IP65-rated waterproof and dustproof build

Operates from 5V to 12V with power consumption <1W

Supports UART, I2C, and IO communication protocols

Enhanced temperature and environmental stability

Compact, easy to install, and built for industrial durability

What’s in the Box
1 × Benewake TF02-Pro LiDAR Distance Ranging Sensor (40M, IP65)

The Benewake TF02-Pro LiDAR delivers industrial-grade precision, outdoor durability, and outstanding range in a compact form. Whether used for drones, autonomous robots, or smart transport systems, it offers exceptional stability, efficiency, and adaptability for modern distance measurement needs.

Order the TF02-Pro LiDAR Sensor now at Skykart.in and power your UAVs, robots, and IoT systems with 40-meter TOF precision built for the toughest environments.
