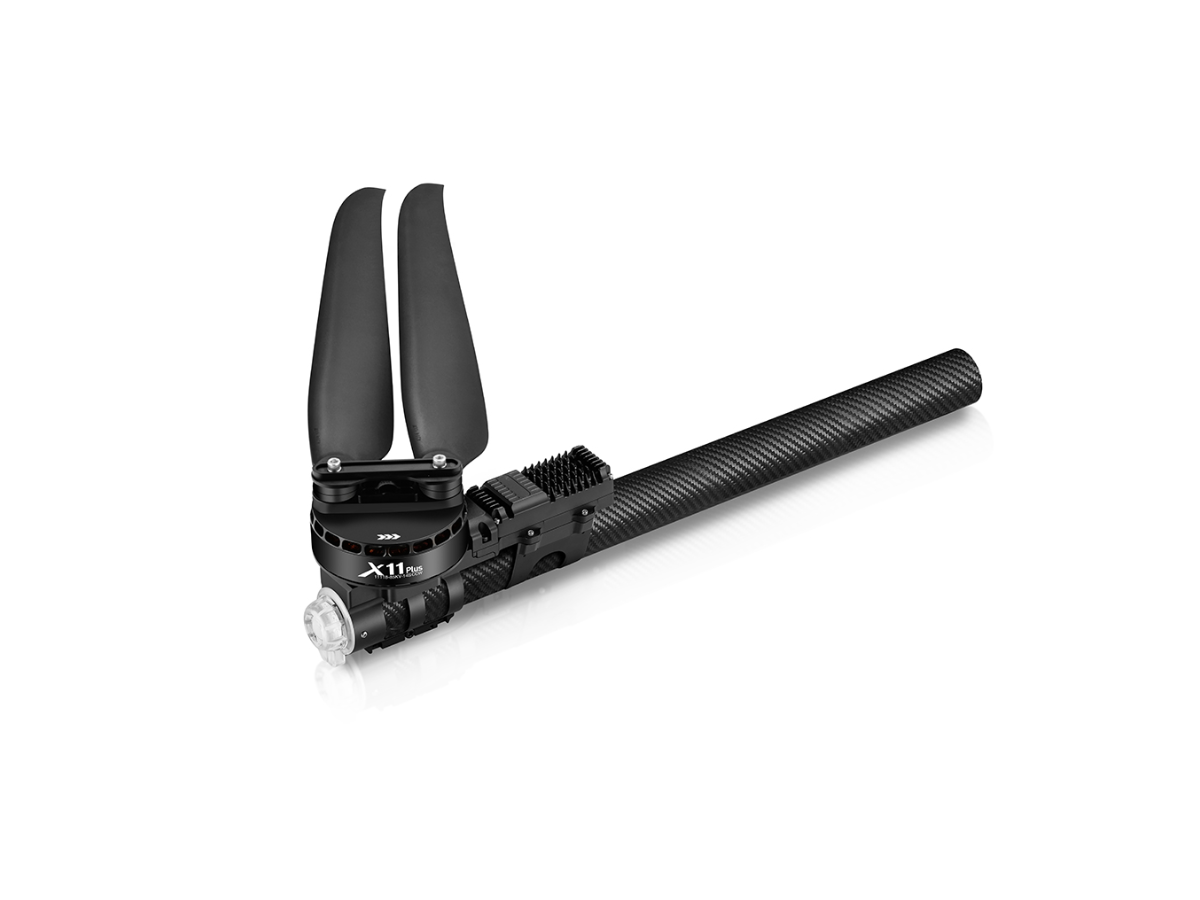

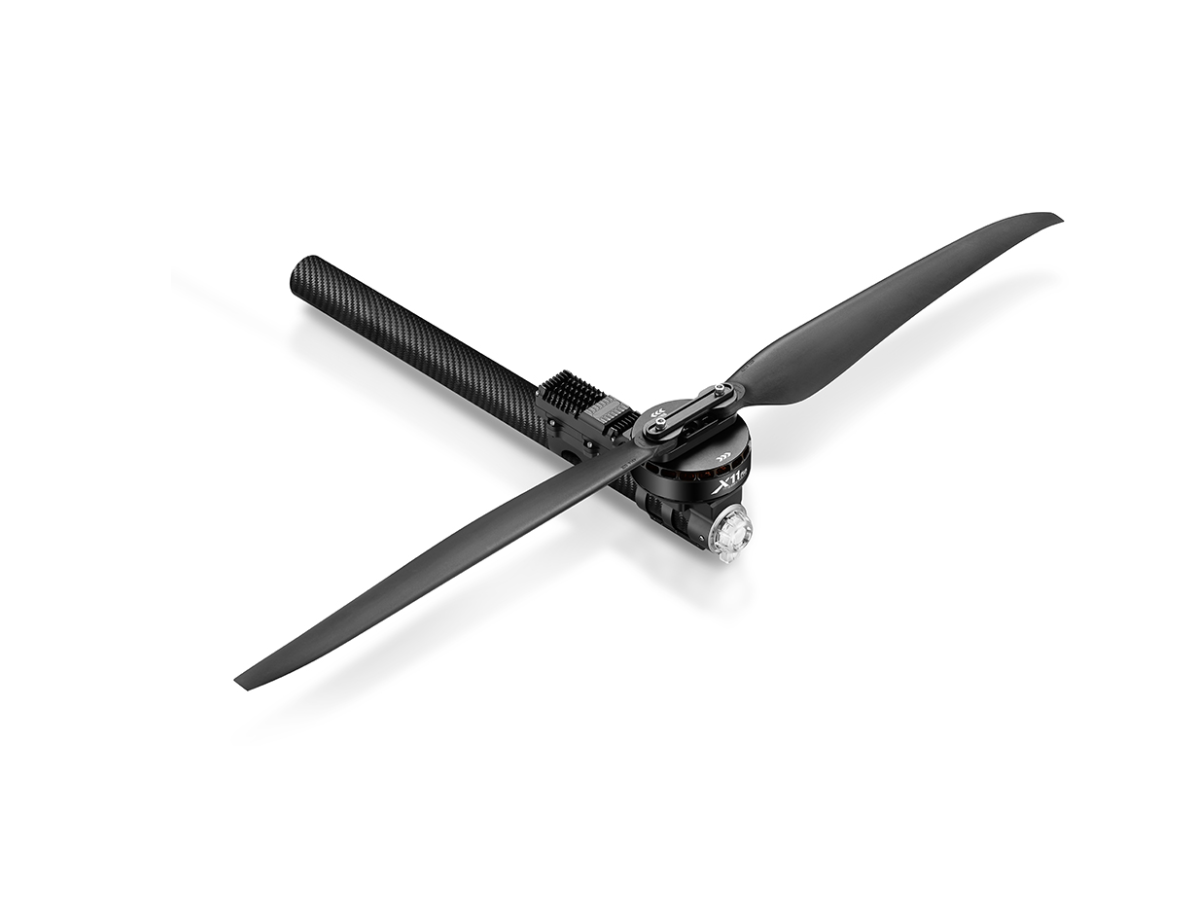

Hobbywing X11 Plus CCW Motor Combo with 4314 Propellers for Drones

Hobbywing X11 Plus CCW Motor Combo with 4314 Propellers

A professional-grade, high-thrust propulsion system designed specifically for agricultural drones. Engineered for low-voltage, high-power applications, this combo provides up to 37kg of thrust per rotor and supports a recommended takeoff weight of 15–18kg per rotor (at 54V, sea level conditions).

The system combines PWM analog and CAN digital signal communication for precise throttle control, offering more stable flights even under non-RTK, single-GPS conditions. With IPX6-rated waterproofing, intelligent protection features, and enhanced heat dissipation, it delivers superior reliability and efficiency in challenging flight environments.

Features
High Thrust Output: Up to 37kg/rotor (54V), optimized for heavy agricultural drones.
Recommended Takeoff Weight: 15–18kg/rotor.
Low Voltage, High Power: Efficient performance even under demanding load conditions.
Hybrid Signal Control: Supports both PWM analog and CAN digital signals for better flight stability.

Fast Response Time: Fault response time shortened to within 270ms.
IPX6 Waterproof ESC: Fully sealed to resist corrosion and rust.
Advanced Heat Dissipation: Upgraded motor structure for better cooling.

Communication & Upgradability:
CAN protocol communication
Supports online ESC firmware upgrades
Compatible with Hobbywing closed-loop systems

Applications:
Agricultural Drones: Crop spraying, seeding, and fertilization UAVs.
Not suitable for industrial or manned drones; for such uses, consult dedicated propulsion solutions from Hobbywing.

Package Includes
1 × XRotor X11 PLUS 11118-85KV CCW Motor
1 × 4314 Carbon-Plastic Propeller
1 × Hobbywing ESC with IPX6 Waterproofing
1 × Motor Mounting Kit
1 × User Manual
